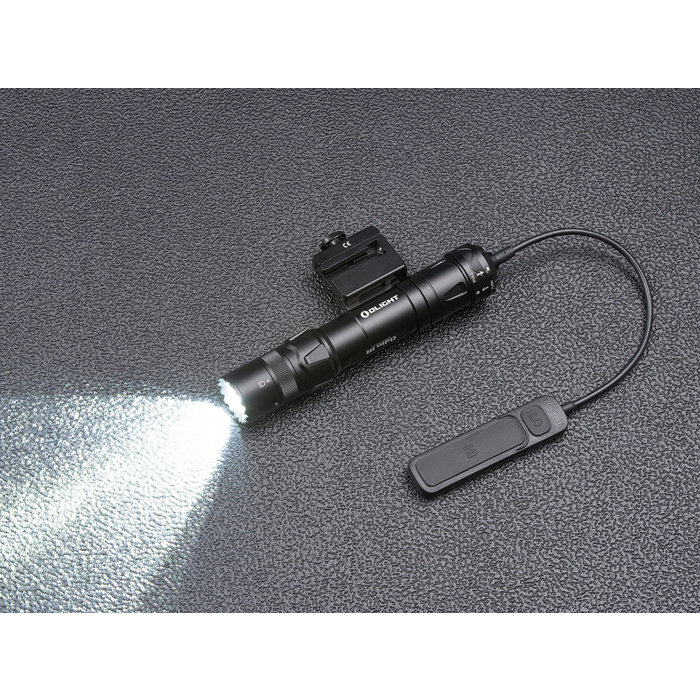

Olight - Weapon lamp Odin IR - max 1,000 lumen

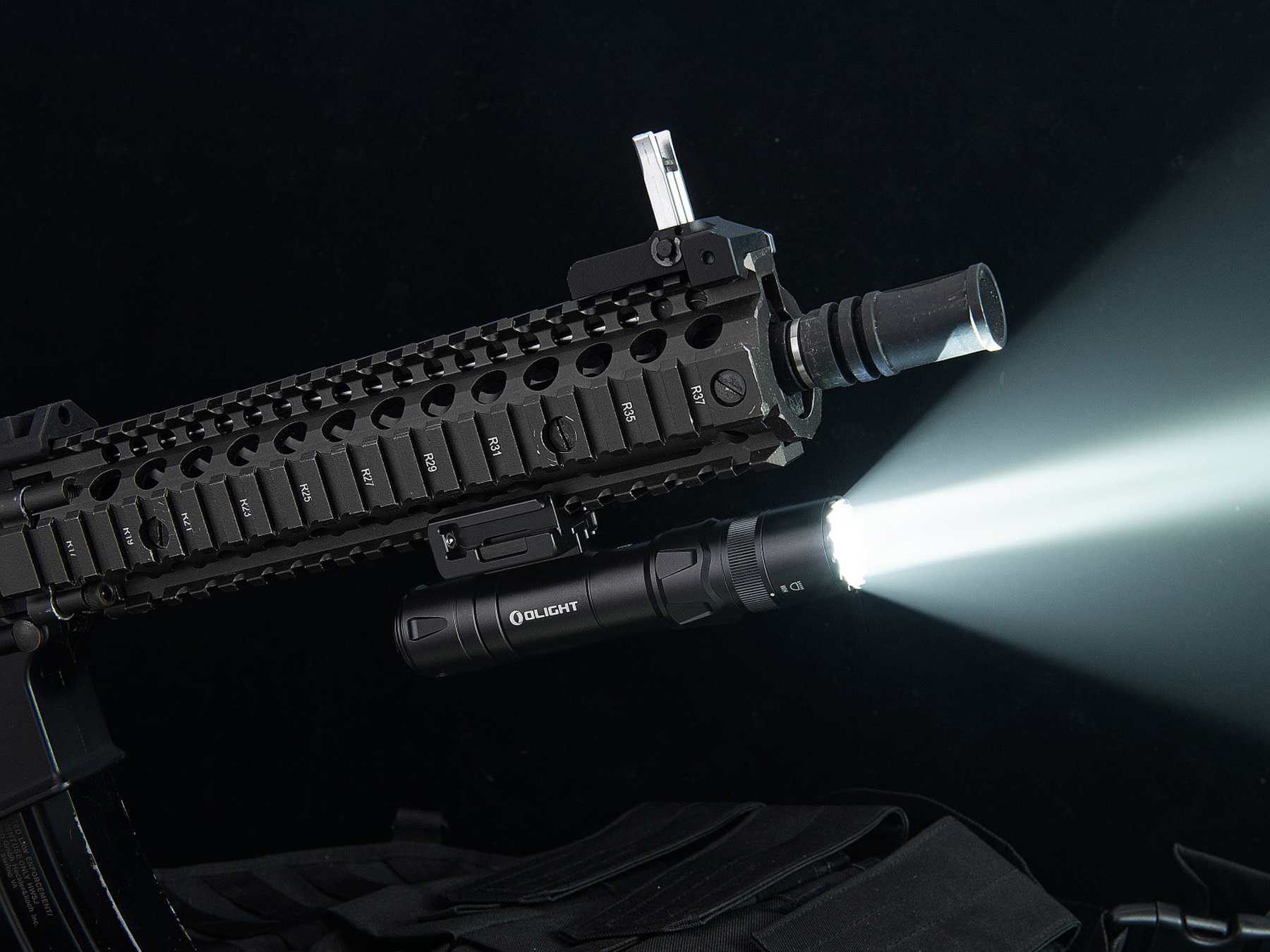

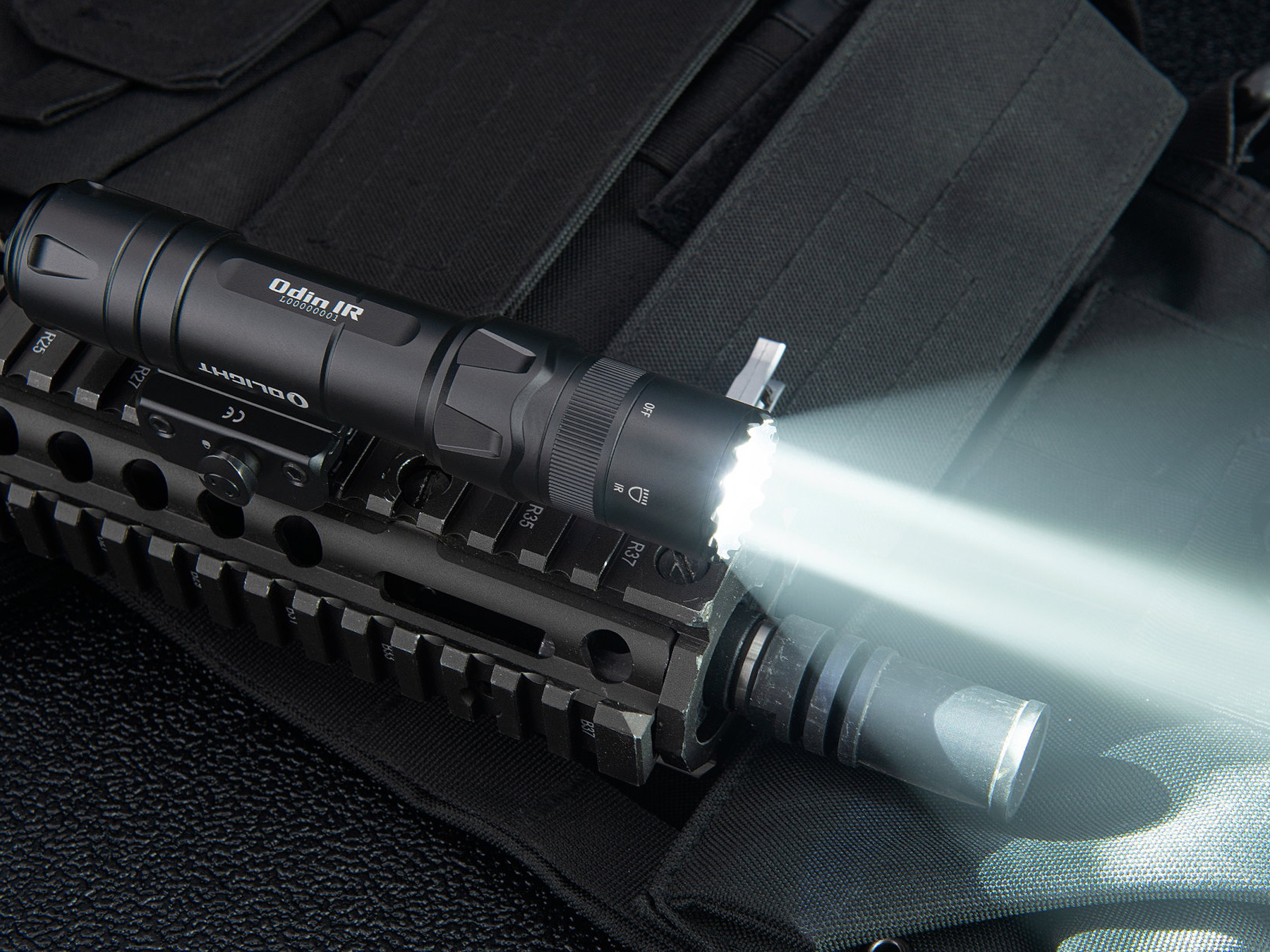

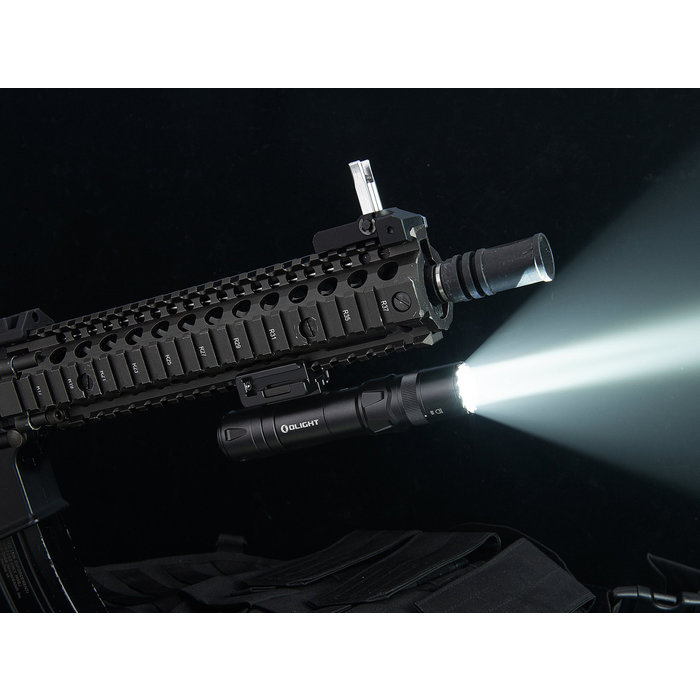

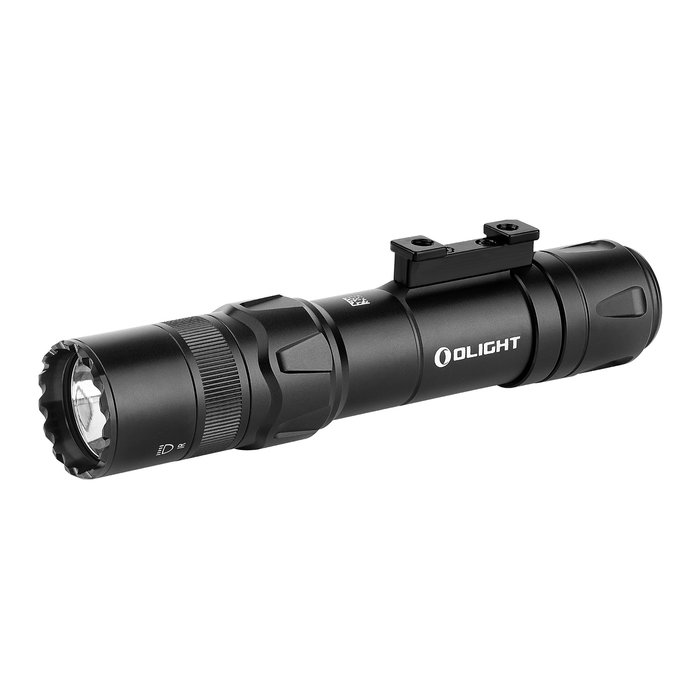

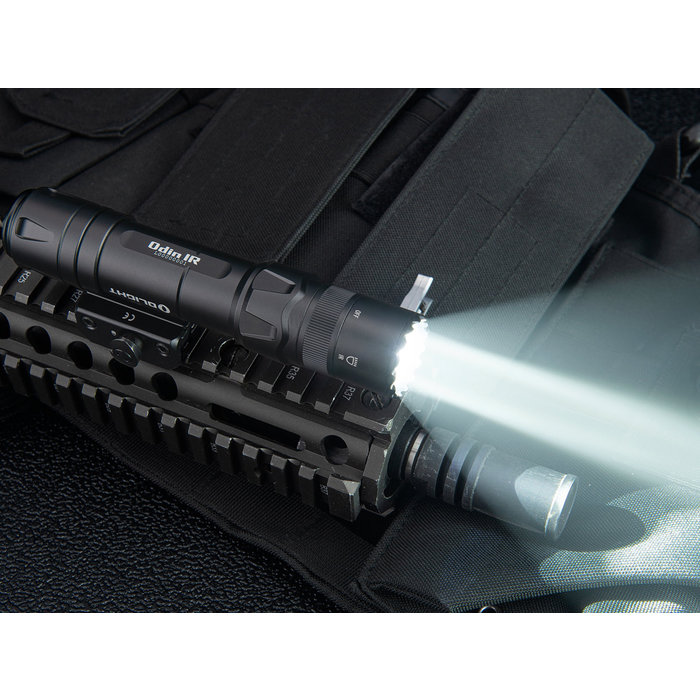

The Olight Odin IR is a weapon lamp specially developed for assembly on Picatinny Rails.

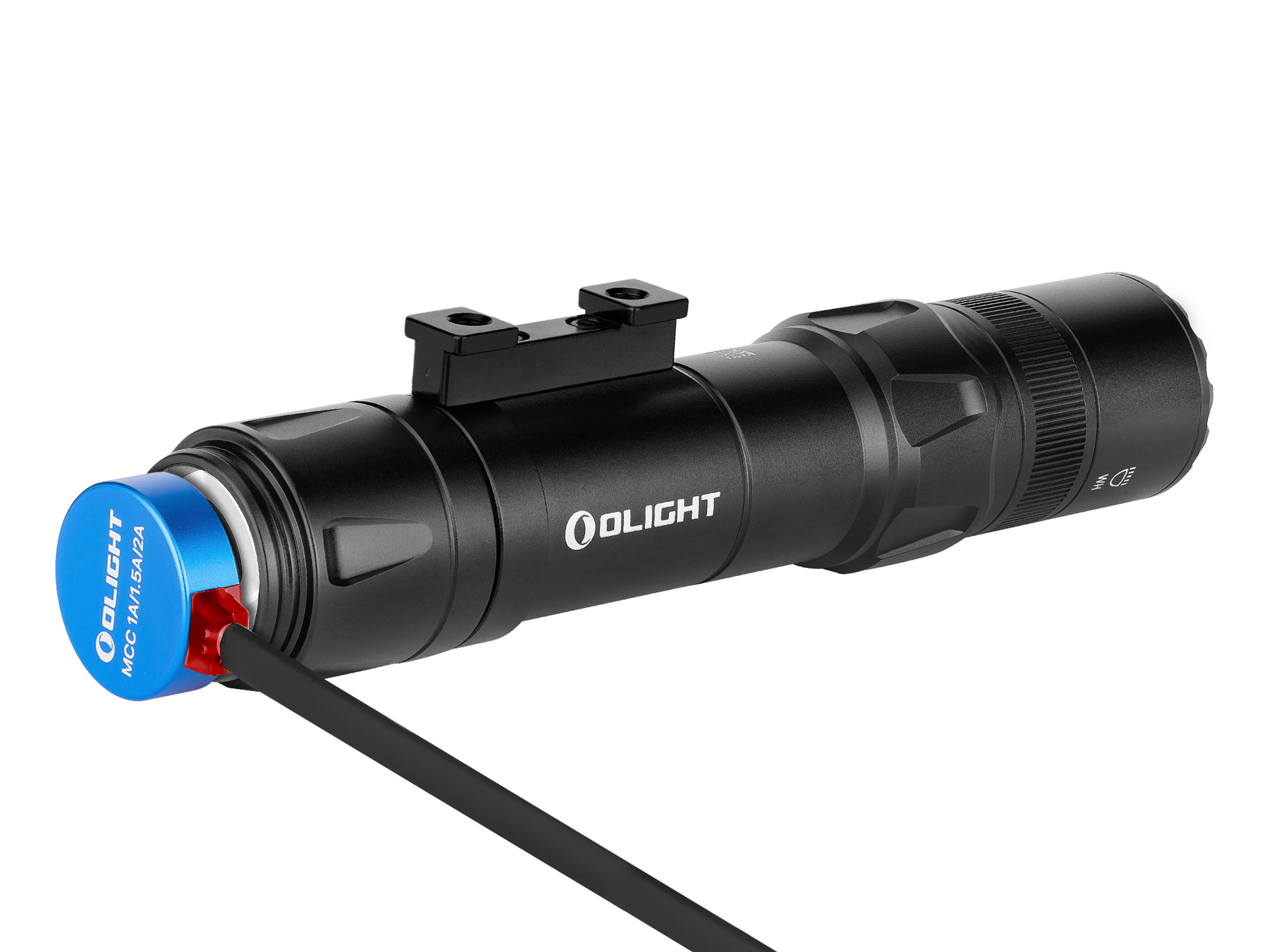

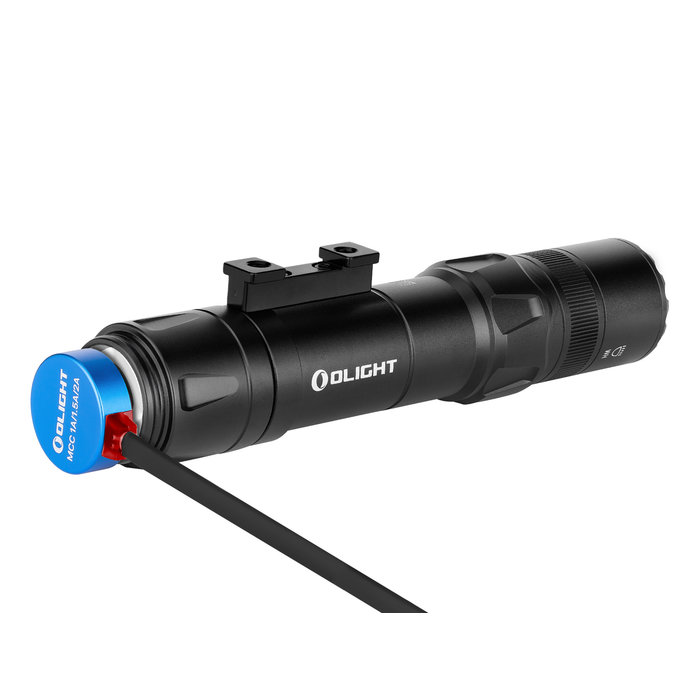

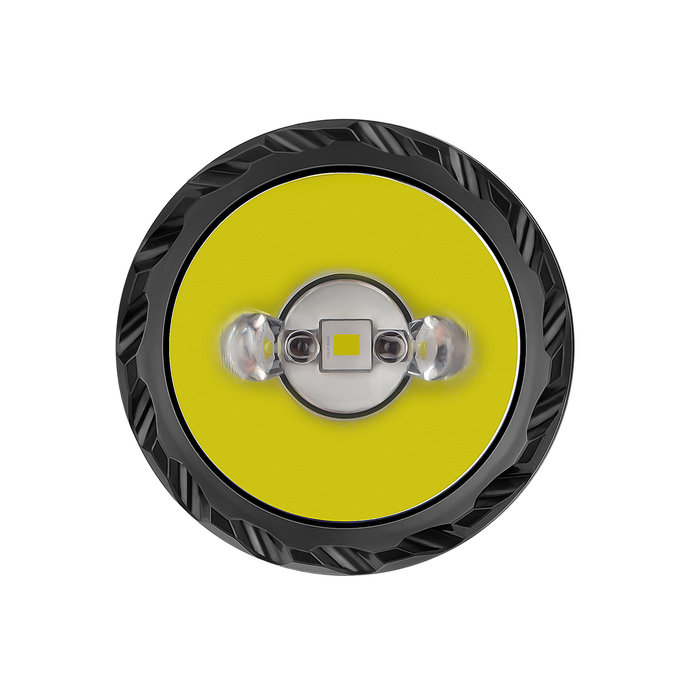

The Odin IR has the possibility to relieve both visible light (LED) and in infrared and can also be used as a flashlight. The lamp has a magnetic rear switch. This rear switch has two positions, depending on how far it is pressed. This switch also serves as a magnetic suspension and charging point for the supplied charging cable.

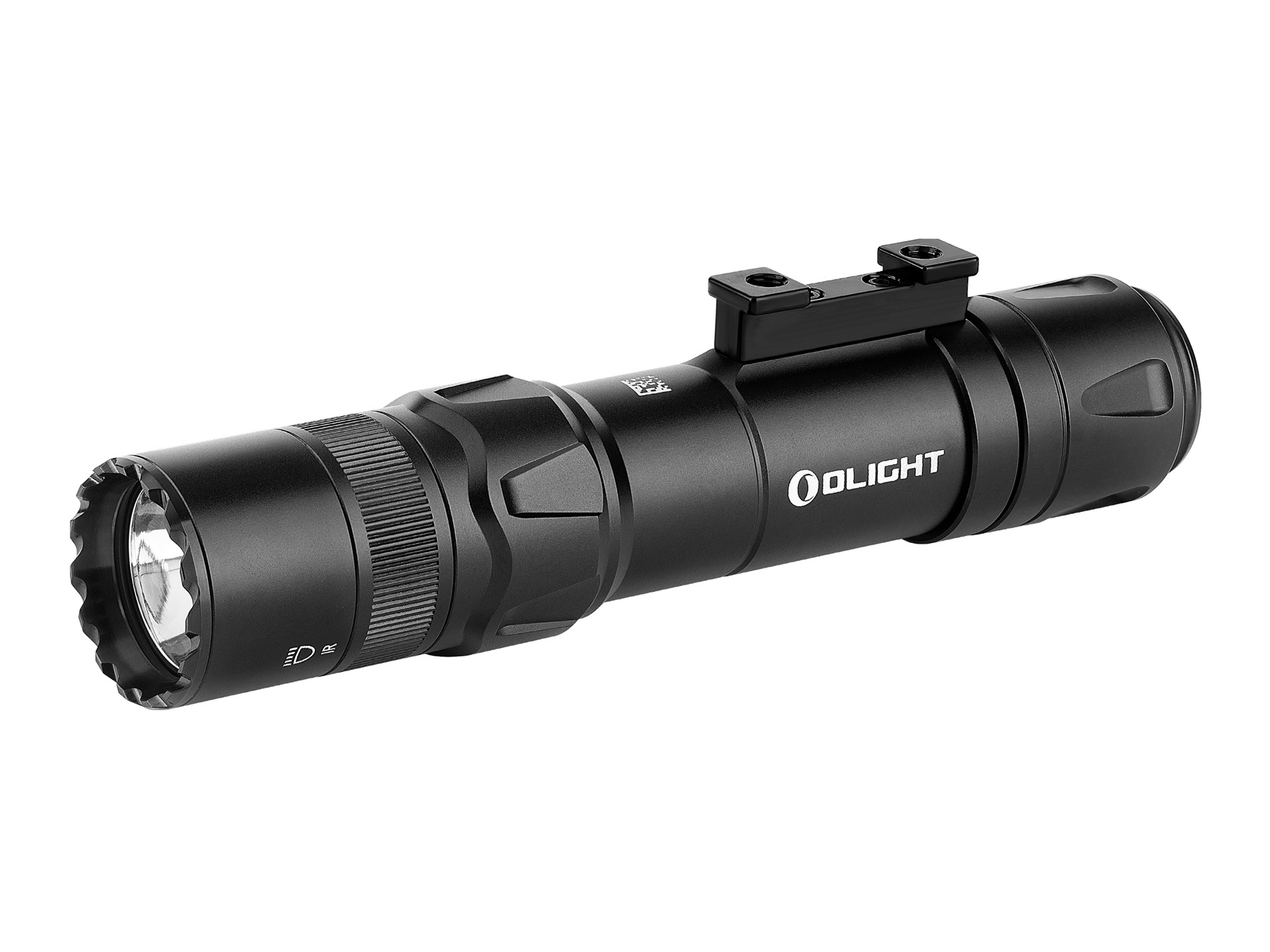

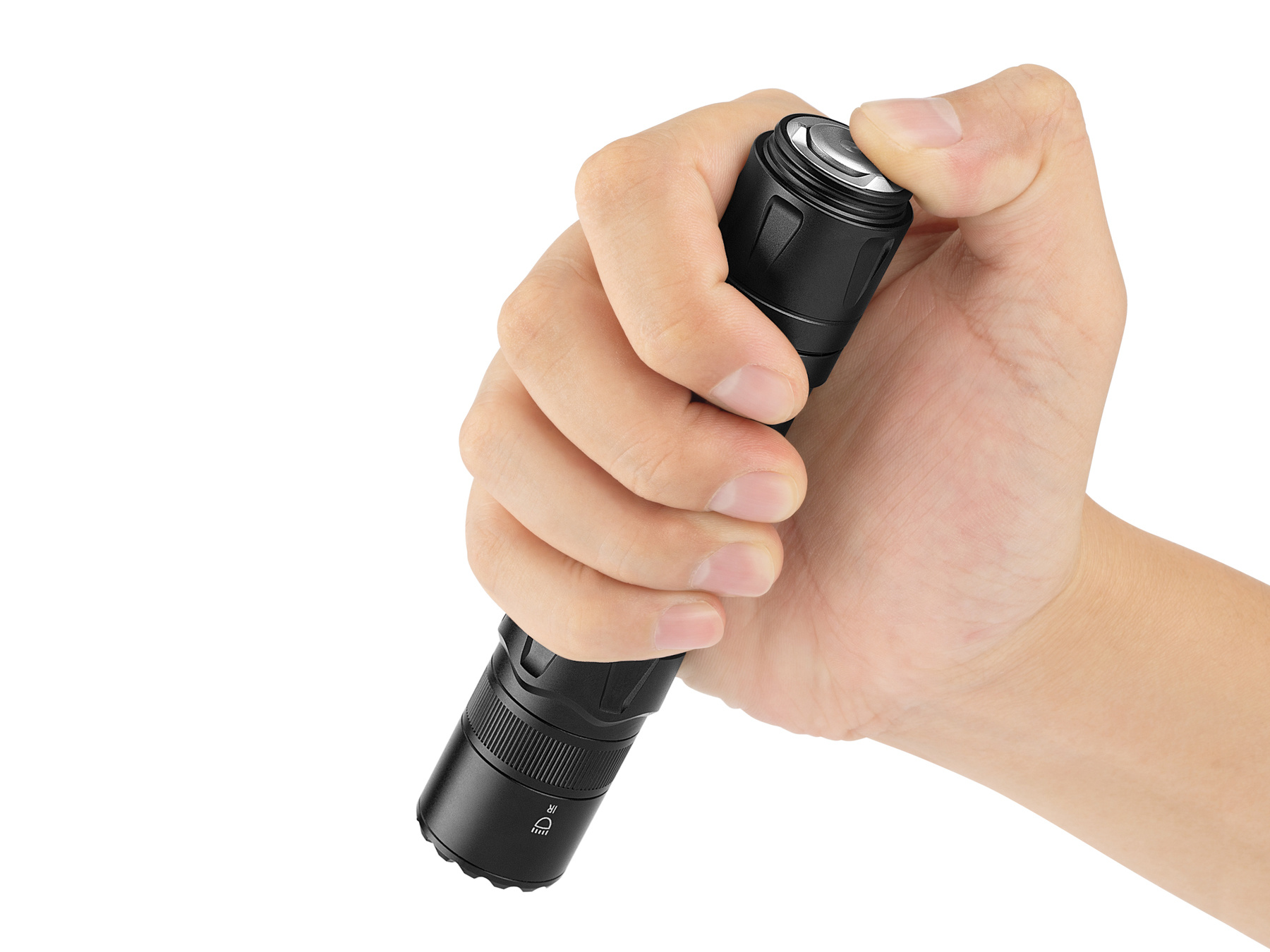

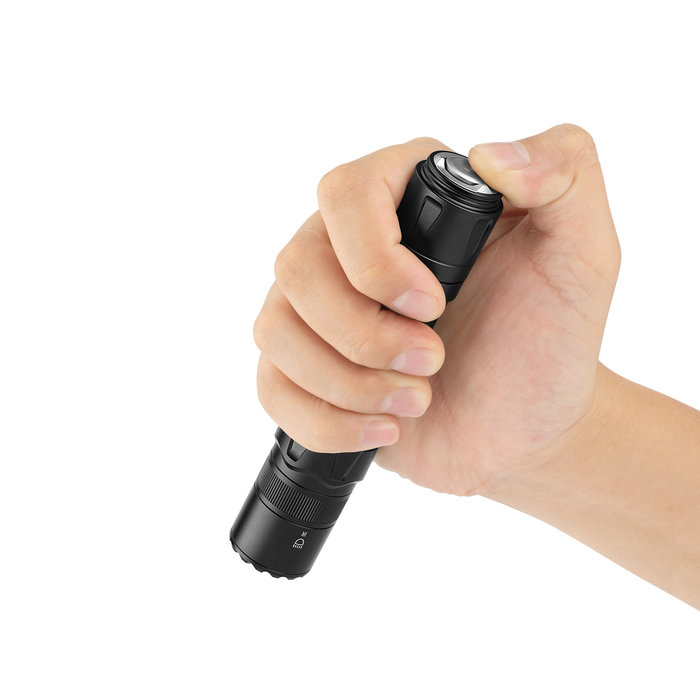

The included weapon mounting system can be attached in various ways and the Quick-release system can be removed from the firearm with 1 click and used as a flashlight. Selecting the desired position (LED, IR, off) is done with a rotation switch, this ergonomic switch can be easily operated whether the lamp is now used as a weapon lamp or as a flashlight.

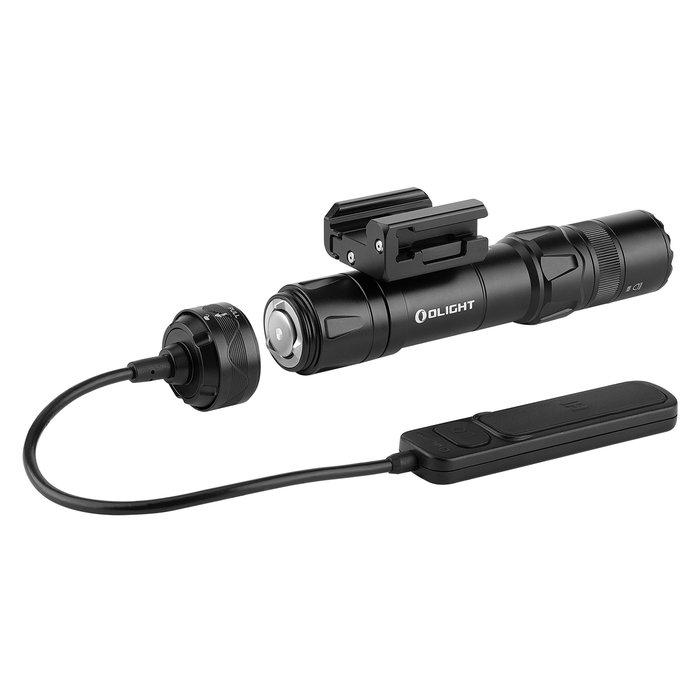

The Odin IR comes with a magnetic distance switch (Ol SROD-7) to operate it when mounted on a firearm. This distance switch has 2 buttons 1 for the high position (both LED and IR) and 1 for the low position, with both buttons the following applies: once pressing is on/off and holding up to it. E
and Magnet ensures fast assembly and a user -friendly locking system ensures that it always stays in place, even under heavy conditions.
Light positions:
High LED / 1000 ~ 450 ~ 200 ~ 120 Lumen / 3 ~ 165 ~ 22 ~ 33 minutes
LED / 200 ~ 120 Lumen / 493 ~ 35 minutes
High IR / 150 MW / 22.5 hours
Low ir / 30 MW / 91 hours
Contains: Odin IR (with battery, ORB-217C50), Picatinny Montage (OL PIC-Mount), Reserve bolts, Imbus, Tie Rips, Magnetic charging cable (MCC3), Magnetic distance switch (2 positions) (Ol SROD-7 ) and user manual.
Length Total (cm) | 13.50 |
Weight (Gram) | 177 |
Designer | Olight |
Handle/Material | Aluminum |
Output (Lumen) | 1000 |
Light range (max meter): | 400.0 |
Lamp species | LED + Ir Iluminator |
Battery species | ORB-217C50 3.6V 5000MAH |
Fire duration lamp (hours) | 91.0 |
Water resistance | IPX8 |
Warranty period (year): | 5 |
Clip: | No |
Specification (NL) | * Fashion 1: 1000 ~ 450 ~ 200 ~ 120 Lumen * Fire duration 1: 3 + 165 + 22 + 33 min * Fashion 2: 200 ~ 120 Lumen * Fire duration 2: 493 + 35 min * Fashion 3: 150 MW * Fire duration 3: 22.5 hours * Fashion 4: 30 MW * Fire duration 4: 91 hours * Stroboscope: No * SOS Mode: no |
